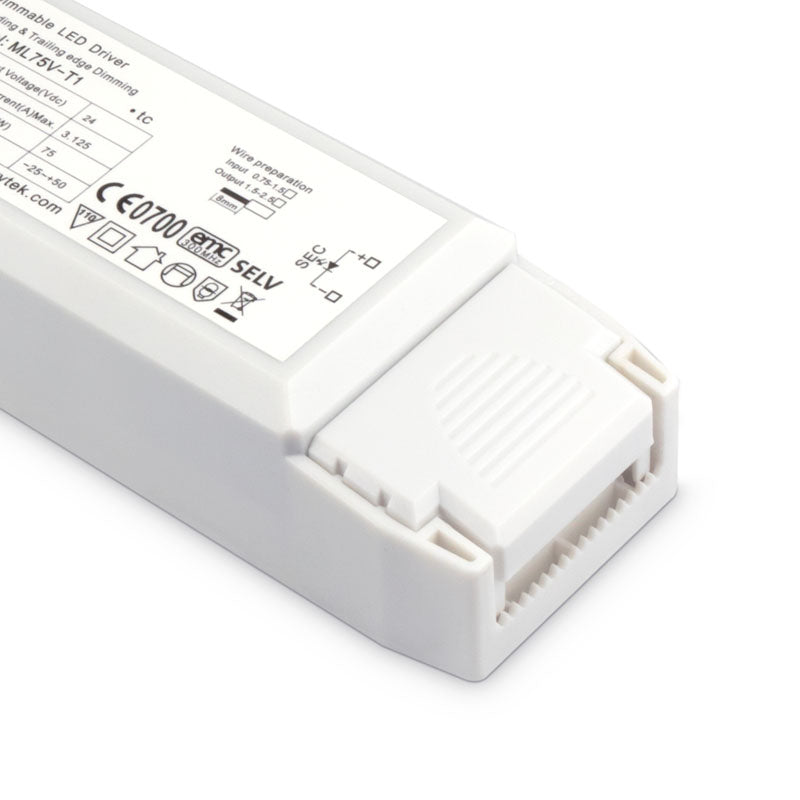

JCC Lighting BC020001 24V 75W Triac dimmable IP20 driver

Qty

- +

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - BC020001
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544092824
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - Yes, leading and trailing 10% to 100%
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Secondary running current(mA) - 3125
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 3 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20
JCC - Height (mm) - 40
JCC - Length (mm) - 220
JCC - Color Finish - White
