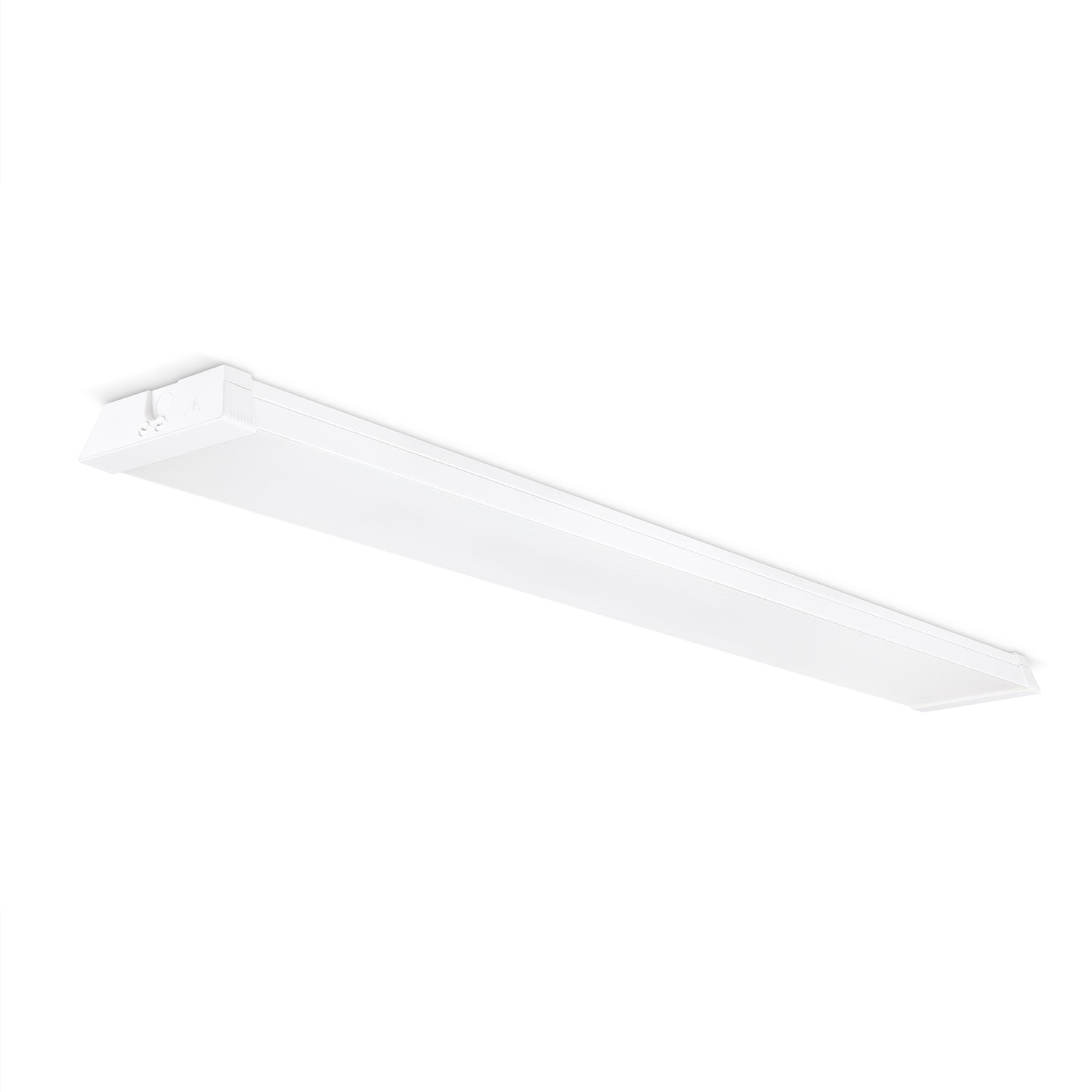

JCC Lighting JC030037 Commercial Linear UGR19 4FT 22W/25W/28W/31W 3CCT Microwave On/Off

Only 5 left in stock. Going Fast Order Soon.

Qty

- +

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - JC030037
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119460
JCC - Primary Material - Pressed Steel
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 82/86/83
JCC - Energy Rating - This product contains a light source of energy efficiency class D/C
JCC - Operating Temperature Range °C - 0-60
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 60-125
JCC - Class - I
JCC - Luminaire Circuit Wattage - 22/25/28/31
JCC - Rating(Amp) - 22/25/28/31
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 18
JCC - Primary Running Current(Amp) - 0.09-0.24
JCC - Secondary running current(mA) - 245/280/315/350
JCC - Voltage Rating - 220-240V~
JCC - Mounting height - 2.5-6m
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screw fix or suspend
JCC - Overall dimensions (mm) Rim - 1200 x 164 x 48mm
JCC - Height (mm) - 48
JCC - Width (mm) - 164
JCC - Length (mm) - 1200
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Commercial Linear LED/Commercial Linear-IS.pdf
