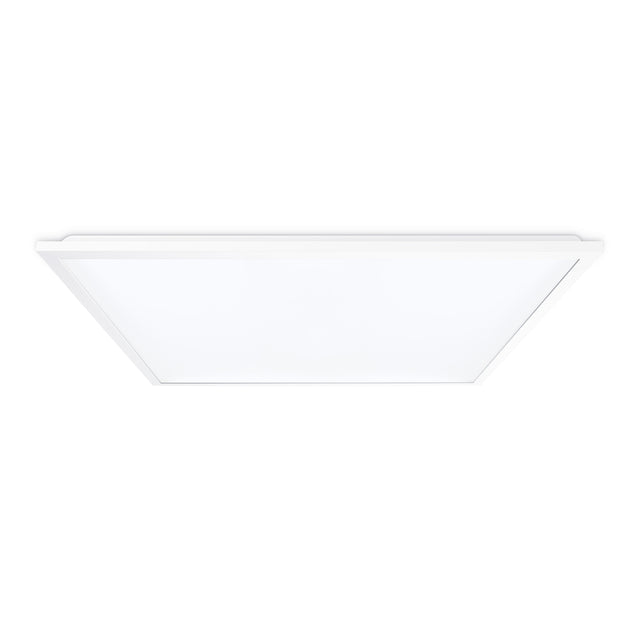

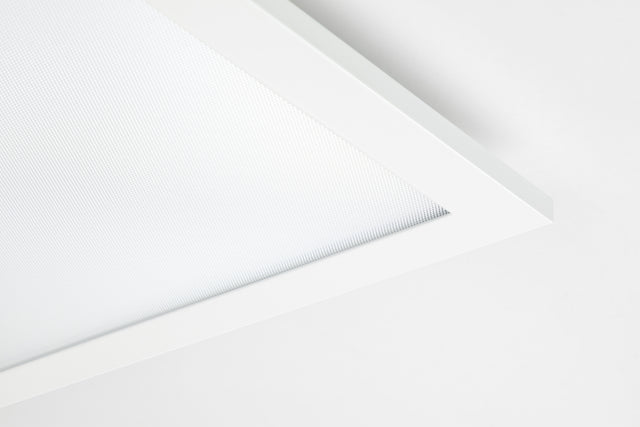

JCC Lighting JC080221 Skytile Base 600x600mm 38W IP40 CCT 3000/4000/5700K TP(a)
JCC Lighting JC080221 Skytile Base 600x600mm 38W IP40 CCT 3000/4000/5700K TP(a) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Up to 122 LpcW

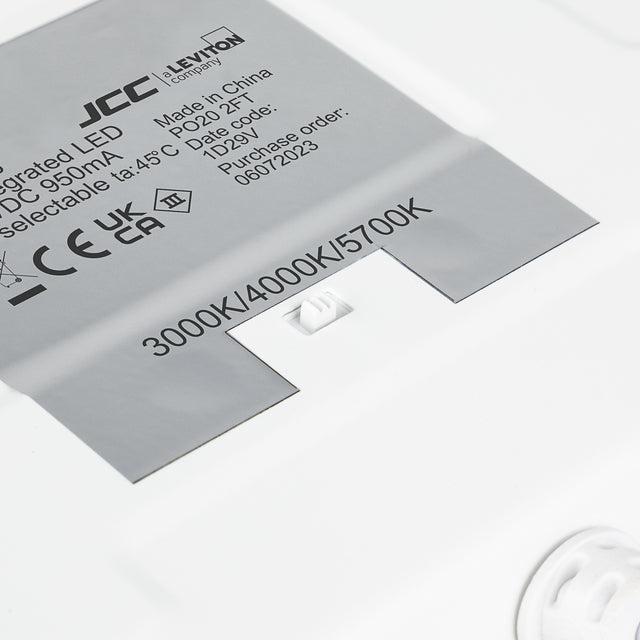

3CCT 3000/4000/5700K selectable

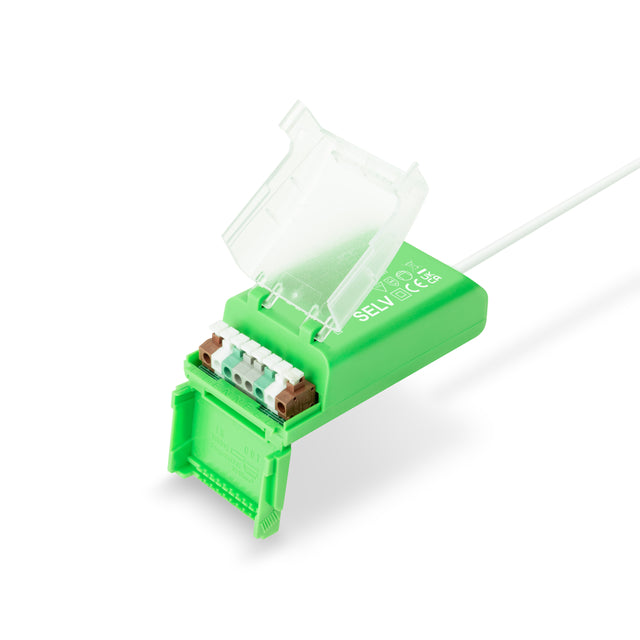

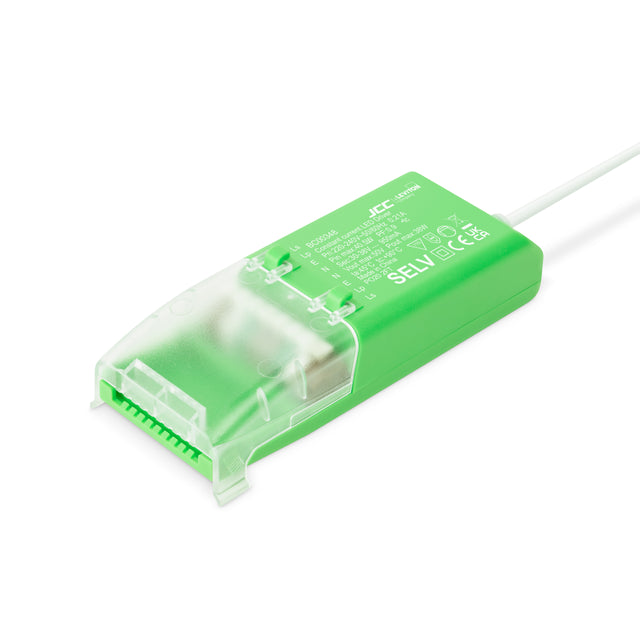

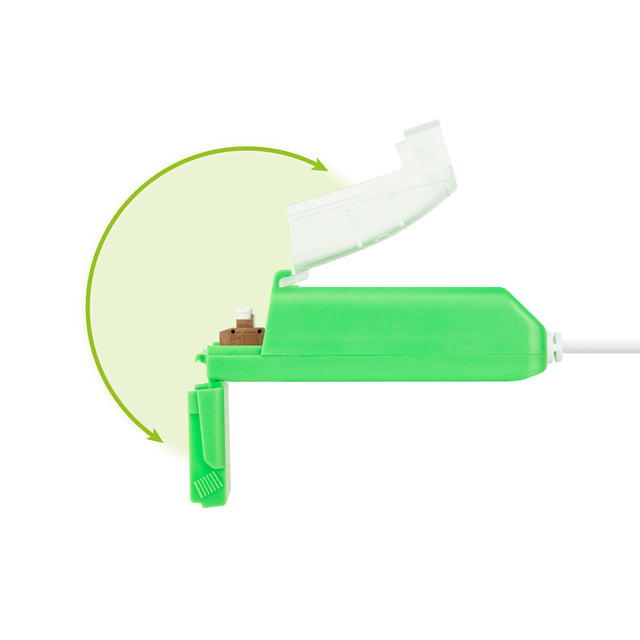

8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring
Flicker free non dimmable driver as standard
Meets TP(a) requirements, suitable for all applications
UGR options designed to comply with BS EN 12464-1 lighting of workspace
Available in low, standard and high output options to suit various applications
High output option over 5100 lumens, suitable for applications with higher ceilings or areas that require greater light levels
DALI/1-10V/Switch dim or DSI options
Emergency remote pack options available
Manufacturers Part Number - JC080221
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119026
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 113
JCC - CRI: Ra - 82-85
JCC - Energy Rating - E
JCC - Operating Temperature Range °C - -20 to +45
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Class - II
JCC - Sec - Voltage (VDC) - 38-40
JCC - Luminaire Circuit Wattage - 38
JCC - Rating(Amp) - 38
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 17
JCC - Primary Running Current(Amp) - 0.23
JCC - Secondary running current(mA) - 950
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP40

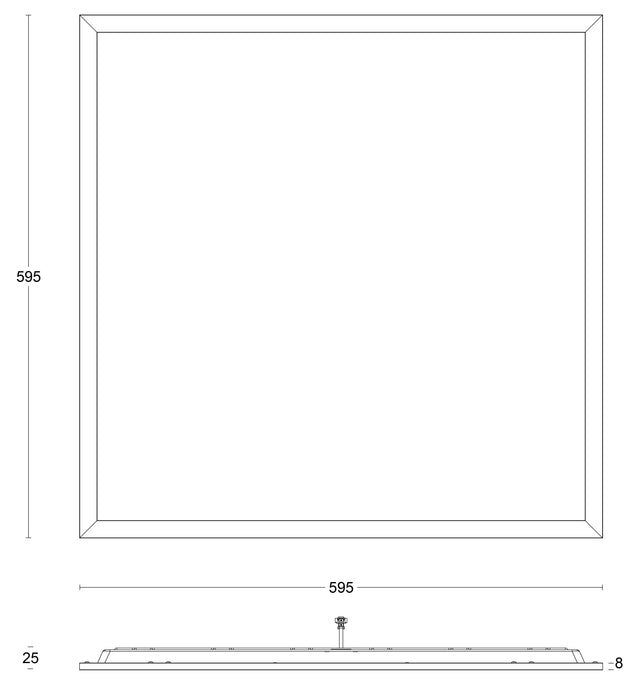

JCC - Overall dimensions (mm) Rim - 595 x 595 x 25mm
JCC - Height (mm) - 25
JCC - Width (mm) - 595
JCC - Length (mm) - 595
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/LED Panels/Skytile Base CCT - IS.pdf
