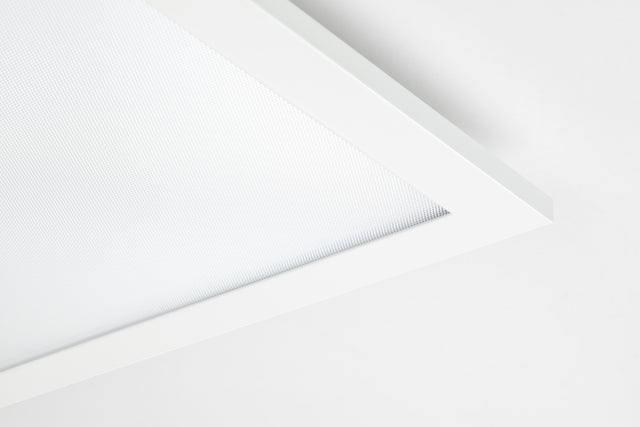

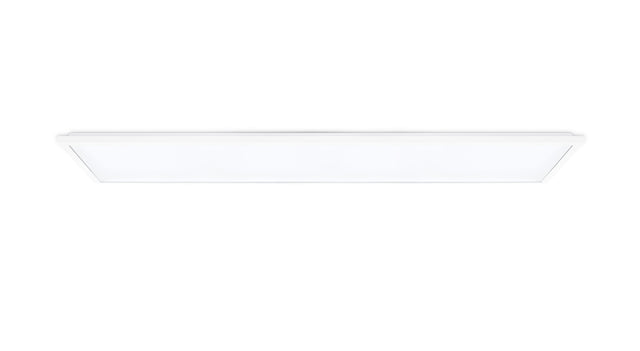

JCC Lighting JC080225 Skytile Base 1200x300mm 30W IP40 CCT 3000/4000/5700K TP(a) DALI/1-10V/Sw Dim
JCC Lighting JC080225 Skytile Base 1200x300mm 30W IP40 CCT 3000/4000/5700K TP(a) DALI/1-10V/Sw Dim is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Up to 120 LpcW
3CCT 3000/4000/5700K selectable

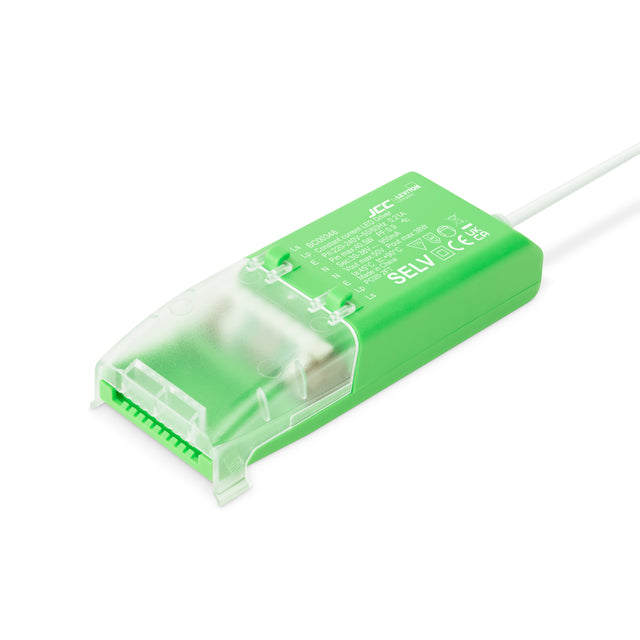

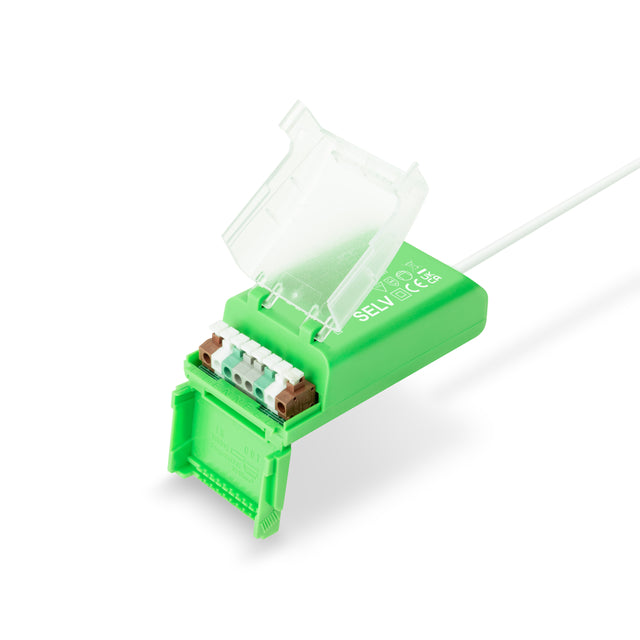

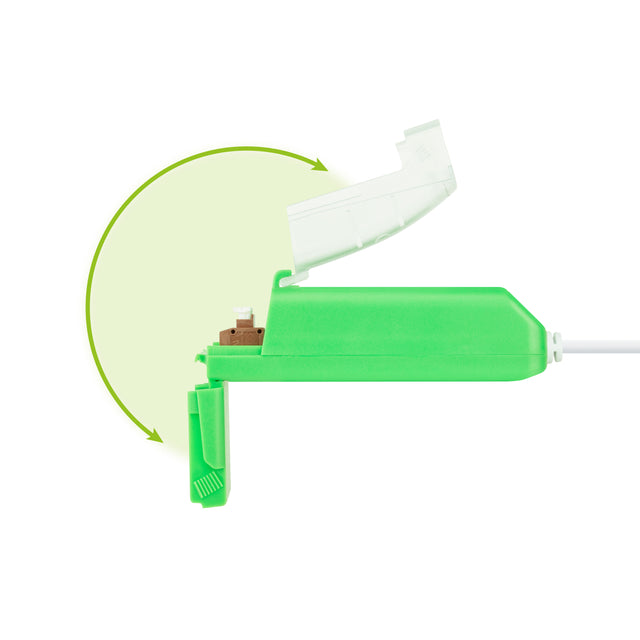

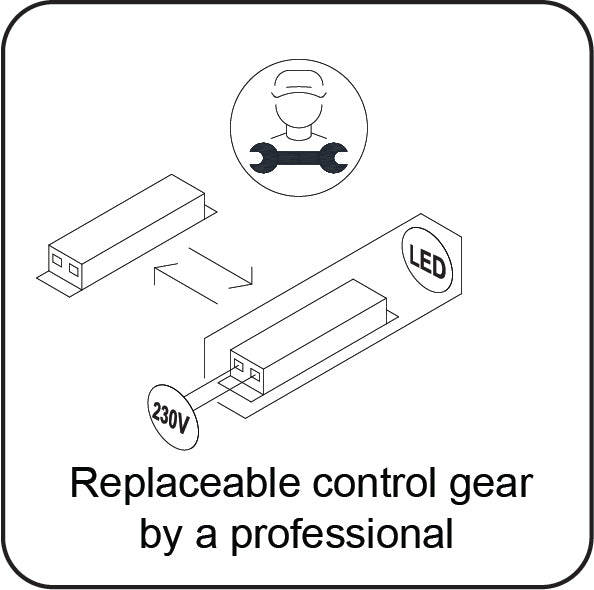

8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring
Flicker free non dimmable driver as standard
Meets TP(a) requirements, suitable for all applications
UGR options designed to comply with BS EN 12464-1 lighting of workspace
Available in low, standard and high output options to suit various applications
High output option over 5100 lumens, suitable for applications with higher ceilings or areas that require greater light levels
DALI/1-10V/Switch dim or DSI options
Emergency remote pack options available
Manufacturers Part Number - JC080225
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119064
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 113
JCC - CRI: Ra - 82-85
JCC - Energy Rating - E
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - DALI/1-10V/Sw dim
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Class - II
JCC - Sec - Voltage (VDC) - 9-40
JCC - Luminaire Circuit Wattage - 30
JCC - Rating(Amp) - 30
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 8
JCC - Primary Running Current(Amp) - 0.16
JCC - Secondary running current(mA) - 750
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP40

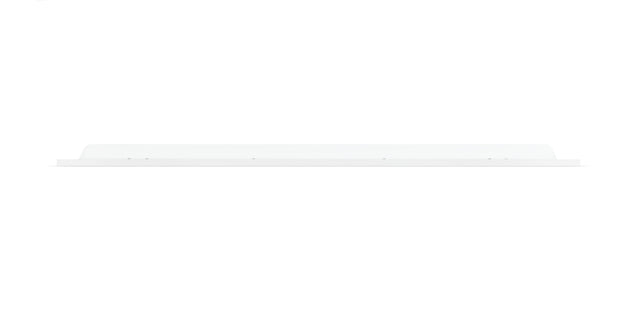

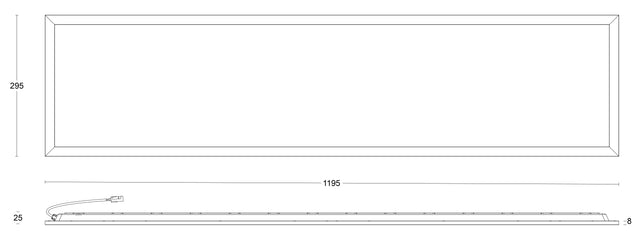

JCC - Overall dimensions (mm) Rim - 1195 x 295 x 25mm
JCC - Height (mm) - 25
JCC - Width (mm) - 295
JCC - Length (mm) - 1195
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/LED Panels/Skytile Base CCT - IS.pdf
