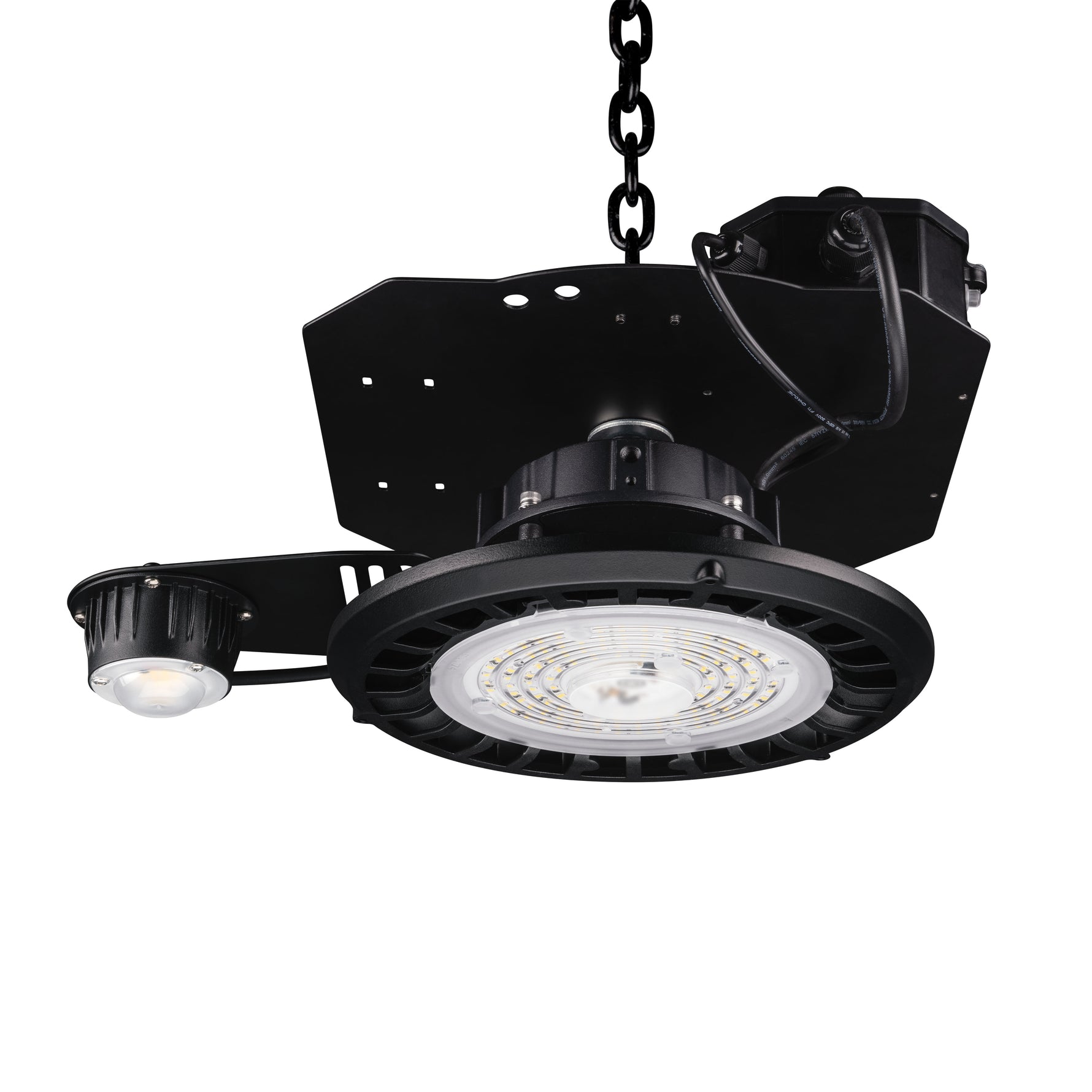

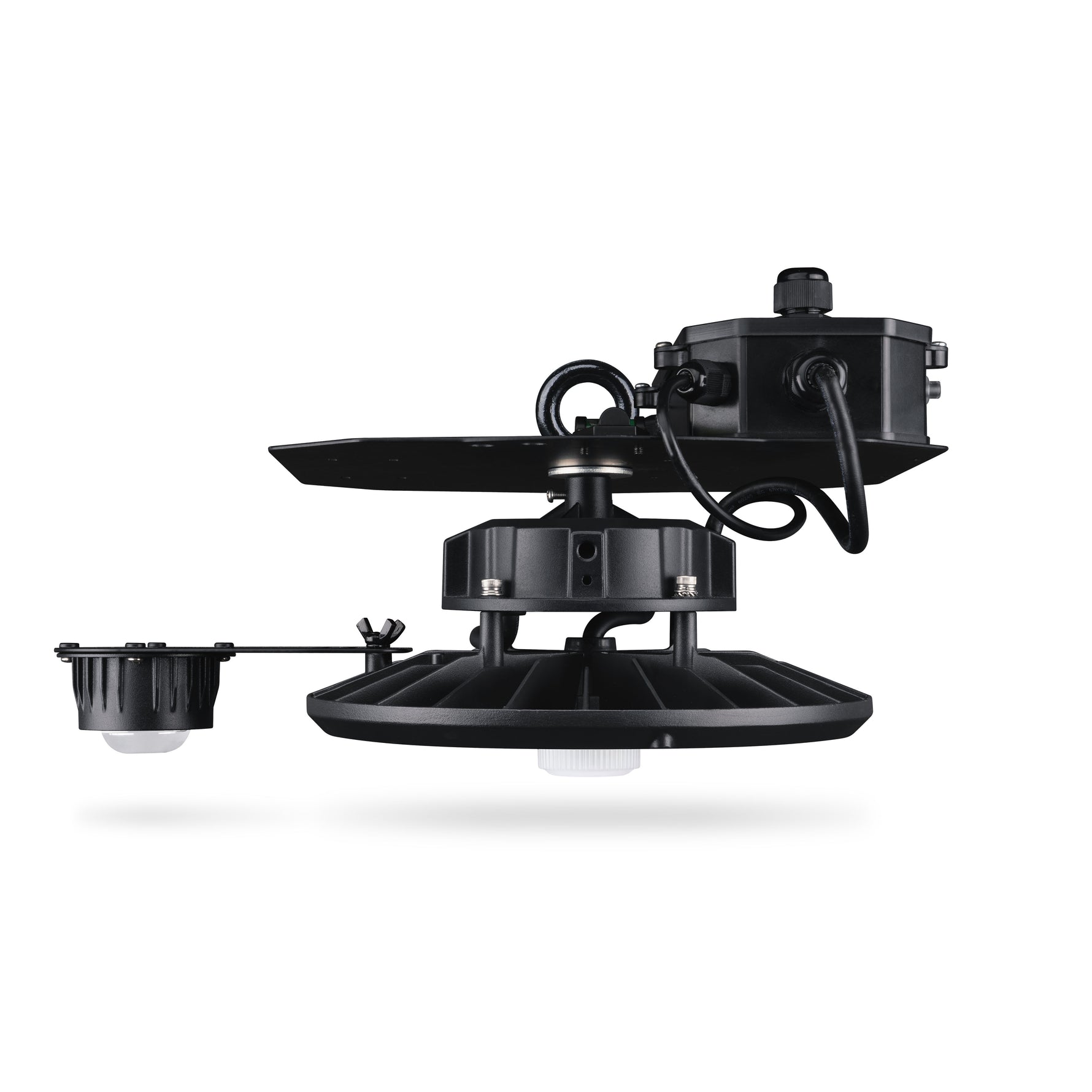

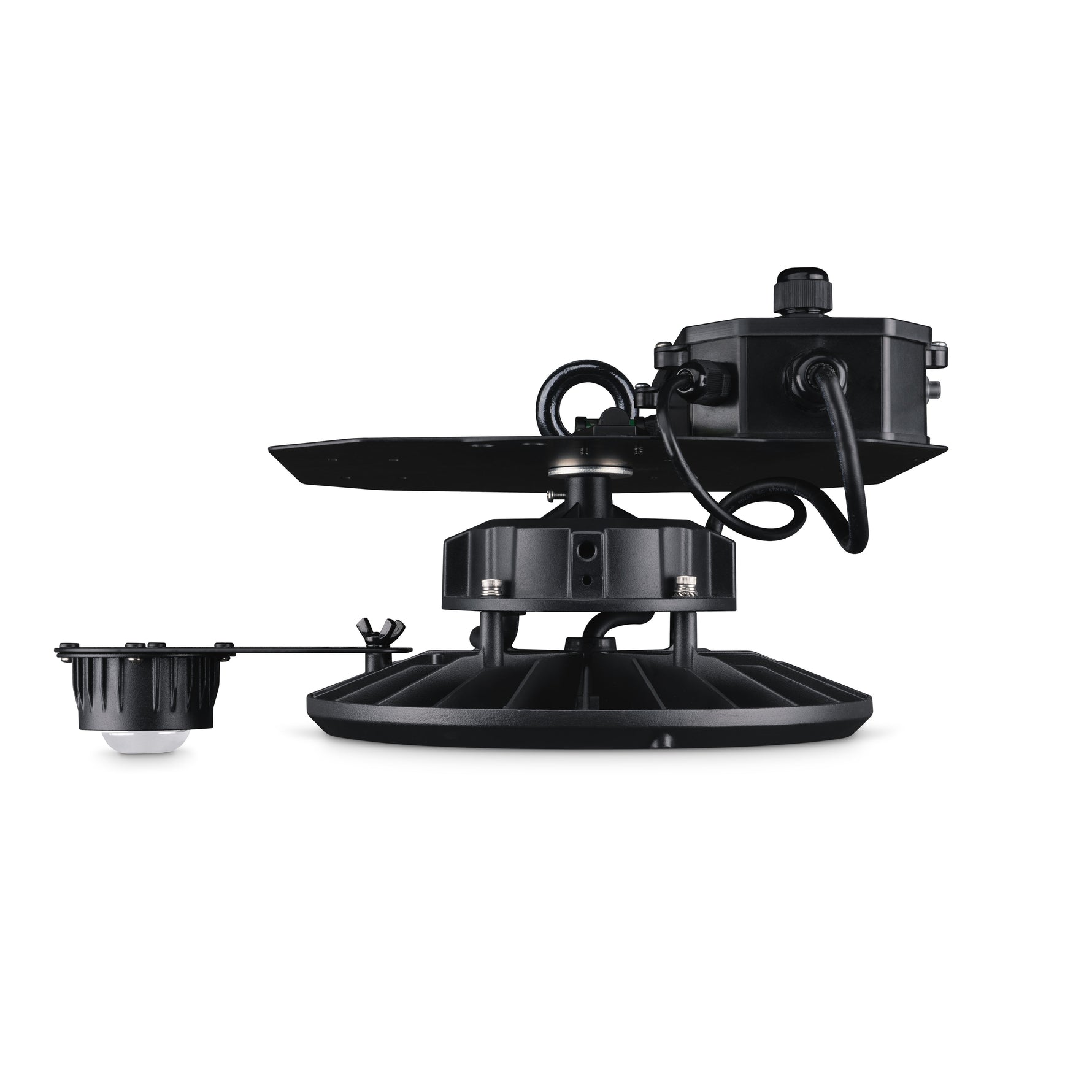

JCC Lighting JC040201 Toughbay Pro 100W (75W & 50W) IP65 5700K 60° 1-10V EM ST
JCC Lighting JC040201 Toughbay Pro 100W (75W & 50W) IP65 5700K 60° 1-10V EM ST is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
100W, 150W and 200W options available with wattage switch to adjust output where necessary
Available in 60°, 90° and 120° degree beam angles
1-10V dimmable as standard

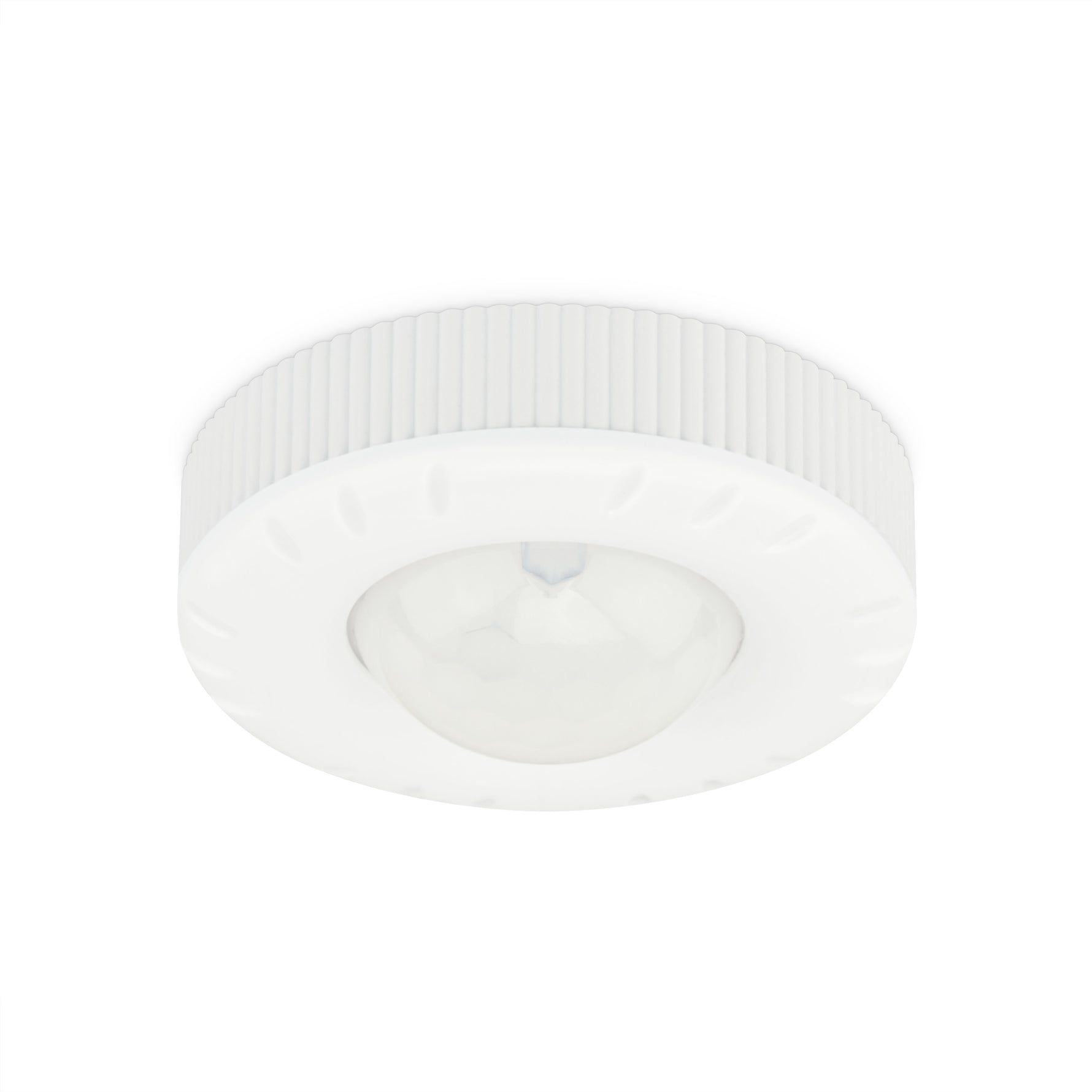

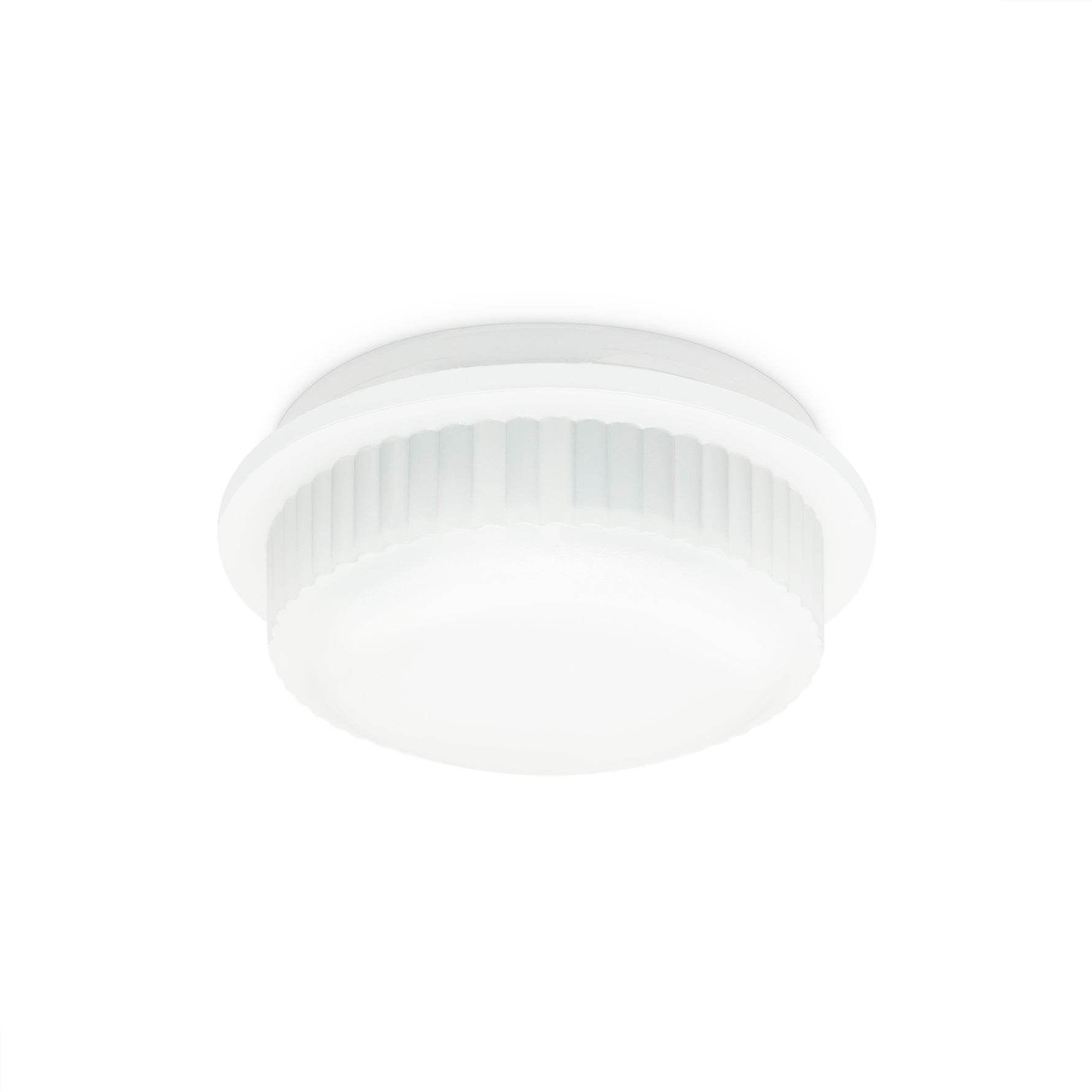

Simple toolless conversion to Microwave dim or PIR dim sensing
Remote control available to control PIR on/off, MW on/off and MW step dim
Ultra efficient, up to 150 Lumens per circuit Watt
Emergency options available
Surface mount bracket also available
5 year warranty including 1 year on-site
Manufacturers Part Number - JC040201
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544122958
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 82
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - 0°C to +40°C
JCC - Dimmable - Yes, 1-10V only
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - <15
JCC - Output Voltage Max/Range (VDC) - 180-260
JCC - Class - Class I
JCC - Luminaire Circuit Wattage - 100/75/50
JCC - Rating(Amp) - 100/75/50
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 58A@130µs 230V~
JCC - Primary Running Current(Amp) - 1.6
JCC - Secondary running current(mA) - 320/400/480
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - 1-10V
JCC - Warranty - 5 Year Warranty(5 year on batteries)(includes 1 year onsite)(see website for terms and conditions)
JCC - IK Rating - IK10
JCC - IP Rating - IP65

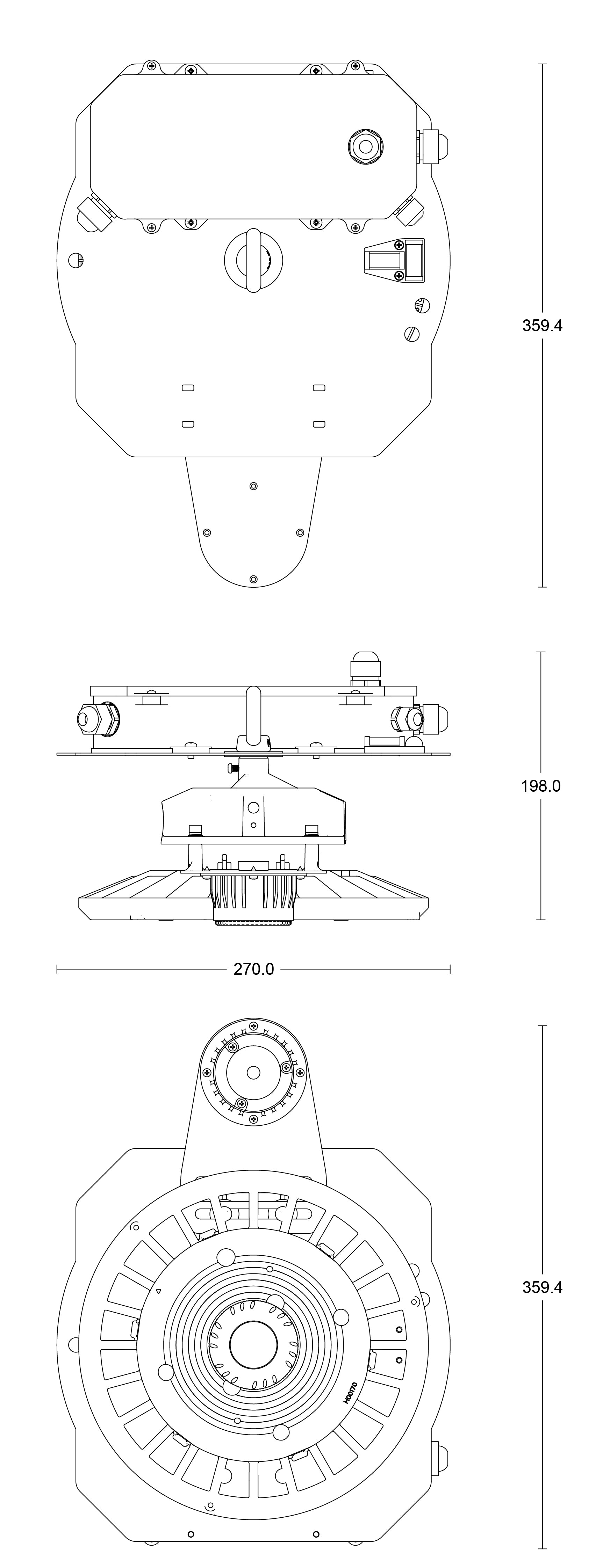

JCC - Overall dimensions (mm) Rim - 359.4 x 270 x 198 cm
JCC - Height (mm) - 198
JCC - Width (mm) - 270
JCC - Length (mm) - 359.4
JCC - Color Finish - Black
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Highbay and Lowbay/Toughbay Pro- IS.pdf
