JCC Lighting | SKU:
JC100128
JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WOP
£67.55
£234.96
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.
JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WOP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Intelligent press release buttons for simple installation

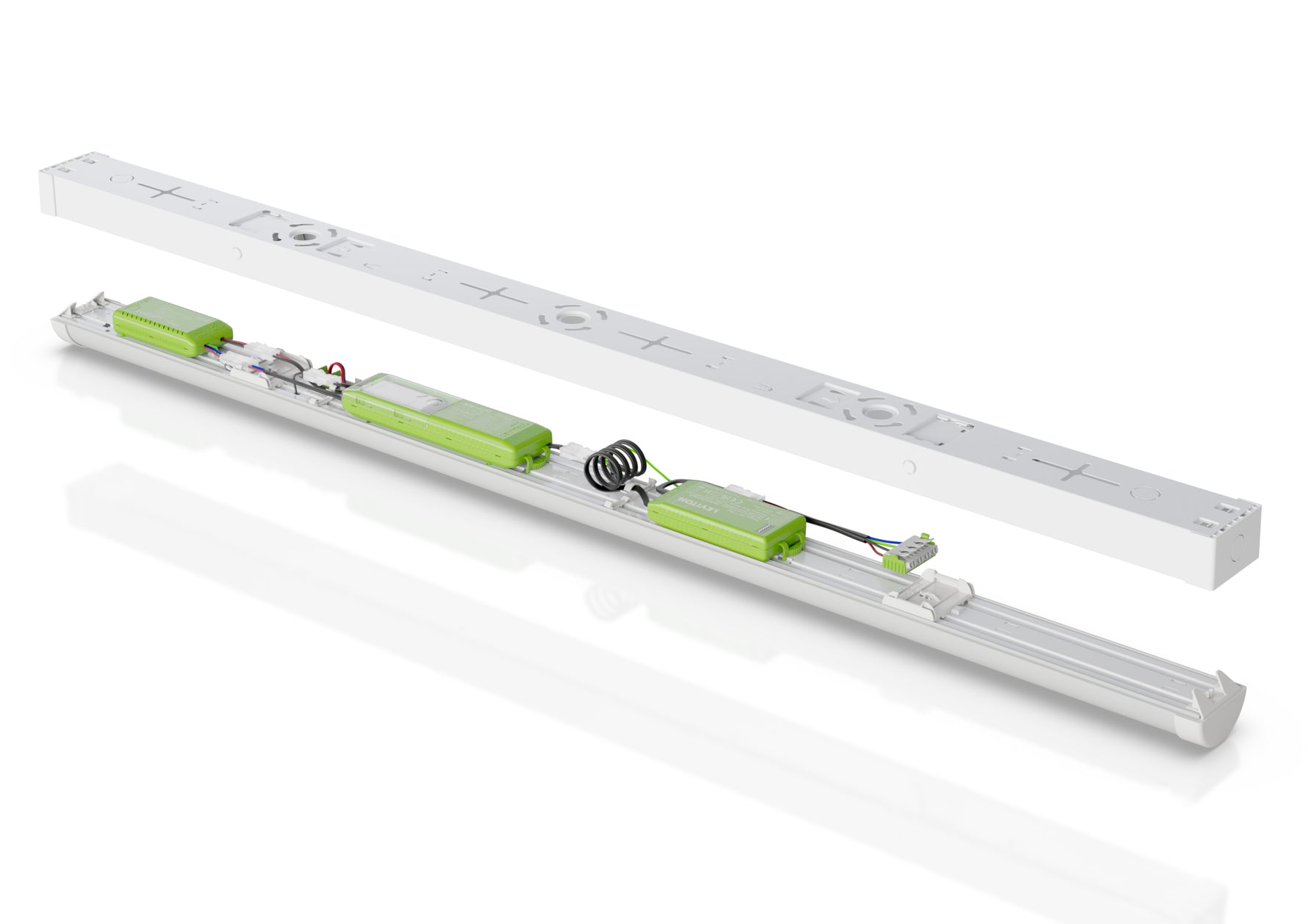

Suspended LED tray for easy installation
Press fit terminals loop in loop out with multiple position options
Rear and end conduit entry points

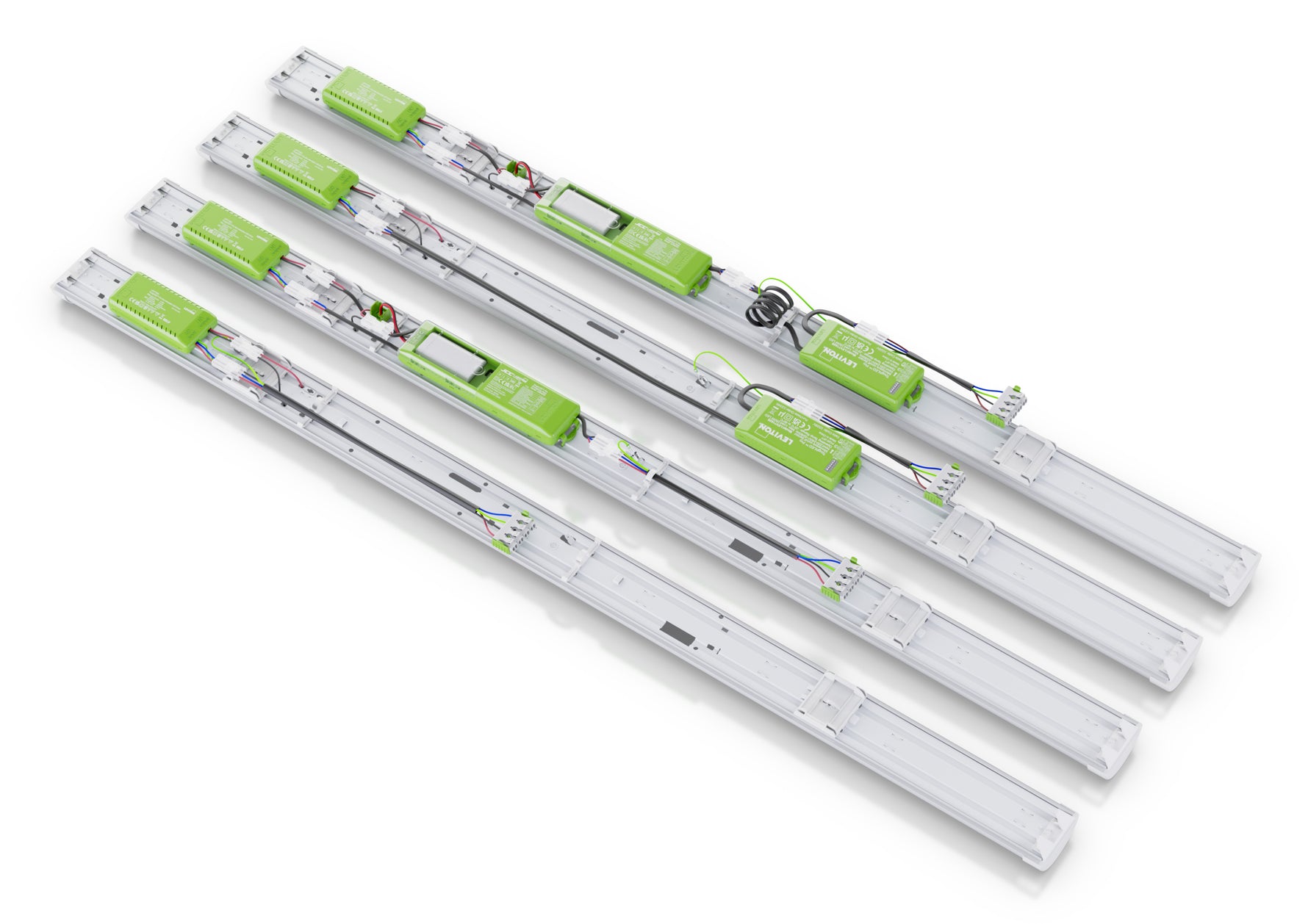

Plug and play Emergency and Microwave on/off modules
Flexible cross mount fixing points
Keyhole BESA mounting points
Pre-moulded two way cable restraints
Improved funnel clip in end caps for ease of installation
Manufacturer - JCC Lighting
Manufacturers Part Number - JC100128
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Steel
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Operating Temperature Range °C - -25?~50?
JCC - Dimmable - DALI or Switch dim
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - Typical: 13% ?@230Vac, 100% load?
JCC - Output Voltage Max/Range (VDC) - Sep-57
JCC - Class - I
JCC - Luminaire Circuit Wattage - 34
JCC - Rating(Amp) - 34
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <20A (Half current pulse width 100uS) @230VAC
JCC - Primary Running Current(Amp) - 0.2A
JCC - Secondary running current(mA) - 650
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Years see JCC Website
JCC - IP Rating - IP40 (Surface Mount) IP20 (Suspended)
JCC - Method of fix - Surface or Suspended

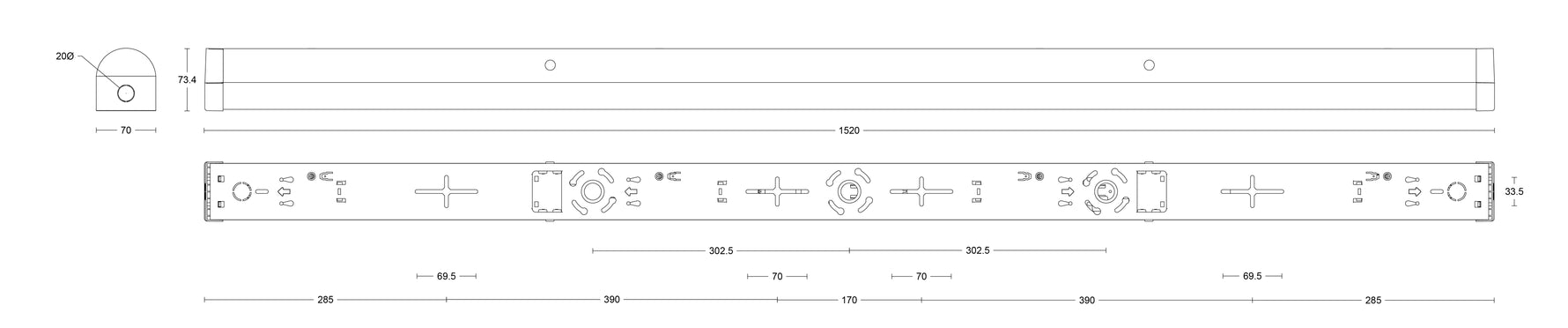

JCC - Overall dimensions (mm) Rim - 1520 x 73.4 x 70
JCC - Height (mm) - 70
JCC - Width (mm) - 73.4
JCC - Length (mm) - 1520
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Battens and Weatherproofs/Skypack Pro/Skypack Pro- IS.pdf
