JCC Lighting | SKU:
JC130010

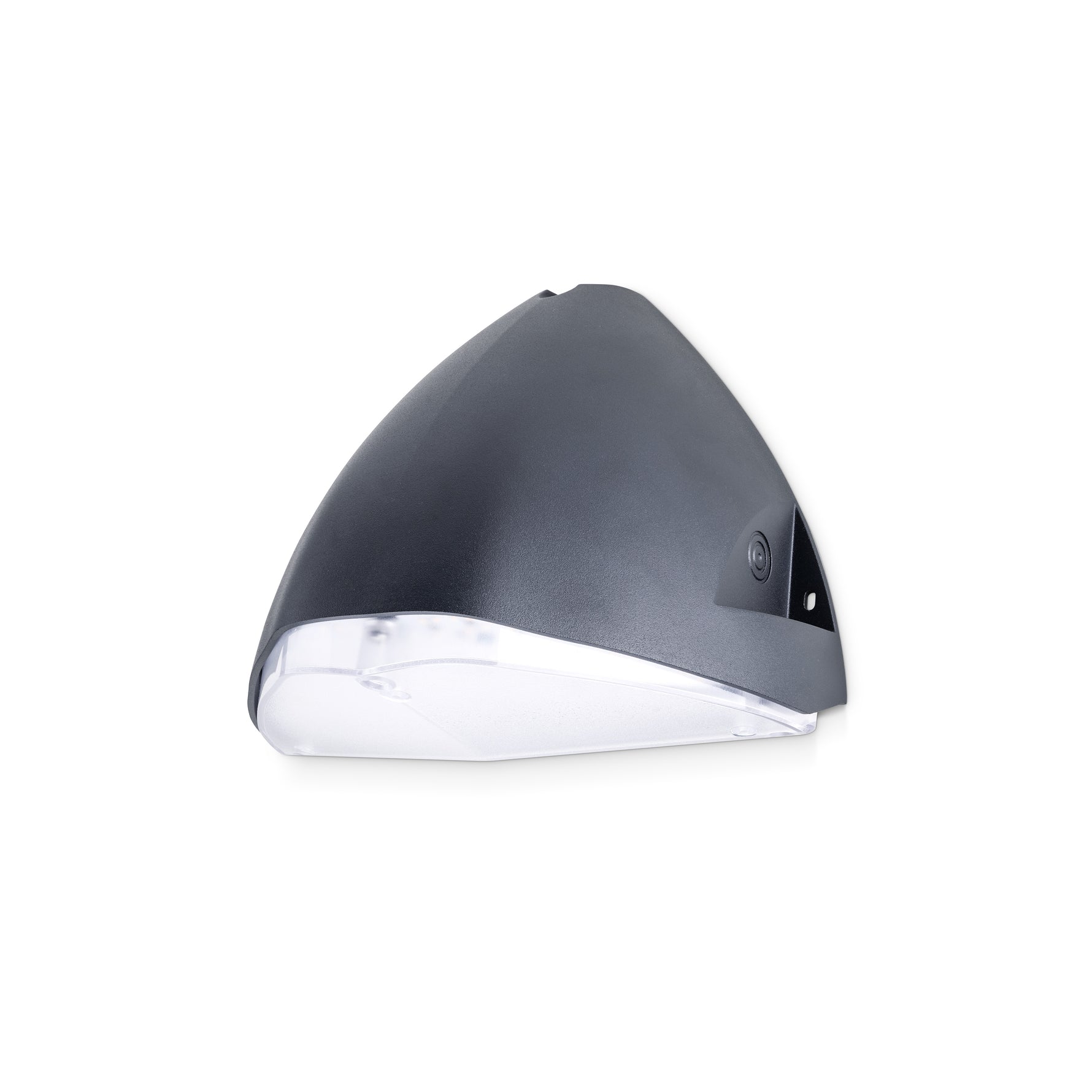

JCC Lighting JC130010 Novium LED Wall Pack 7/8/10/12W IP65 IK10 3000/4000K Black
£71.69
£186.77
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.
JCC Lighting JC130010 Novium LED Wall Pack 7/8/10/12W IP65 IK10 3000/4000K Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Multiple Wattage selectable
Two colour selectable
Downward beam angle aids in reduction of light pollution
IP65 and IK10
Up to 144 LpcW
Emergency and photocell option available
Manufacturer - JCC Lighting
Manufacturers Part Number - JC130010
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544120817
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 102
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - -20 to +40
JCC - Dimmable - No
JCC - Power Factor Correction - 0.7-0.9
JCC - Total Harmonic Distortion (THD)% - 10
JCC - Output Voltage Max/Range (VDC) - 28.6-35.2
JCC - Class - I
JCC - Luminaire Circuit Wattage - 7/8/10/12
JCC - Rating(Amp) - 7/8/10/12
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 9
JCC - Primary Running Current(Amp) - 0.038/0.042/0.049/0.054
JCC - Secondary running current(mA) - 200/250/300/350
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Suitable for inside Zone 1
JCC - IK Rating - IK10
JCC - IP Rating - IP65
JCC - Method of fix - Screw fix

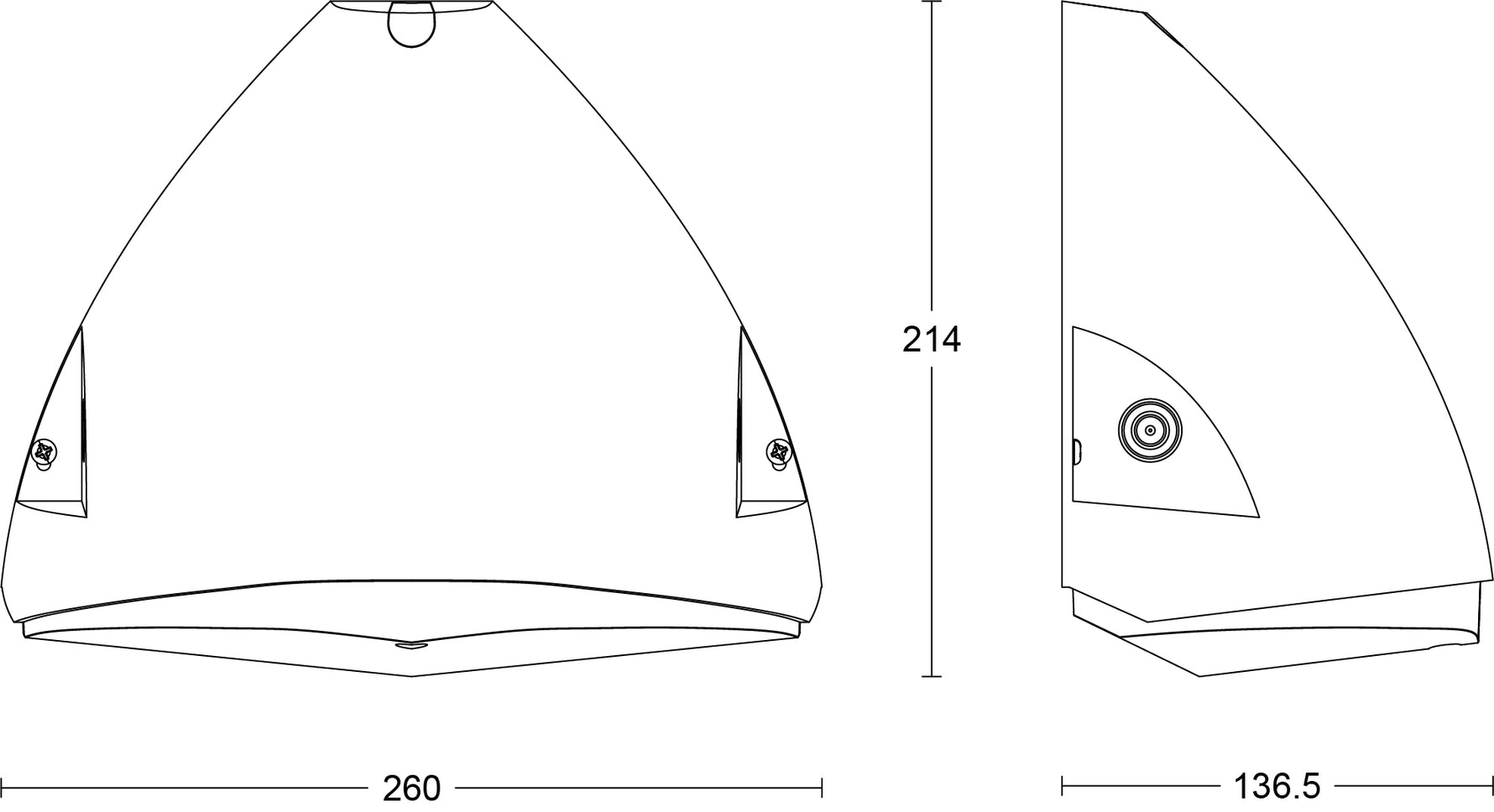

JCC - Overall dimensions (mm) Rim - 136.5 x 214 x 260mm
JCC - Depth (mm) - 260
JCC - Height (mm) - 214
JCC - Width (mm) - 136.5
JCC - Color Finish - Black
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Highbay and Lowbay/Novium Wall Pack-7_8_10_12W - IS.pdf
