JCC Lighting | SKU:
JC5504

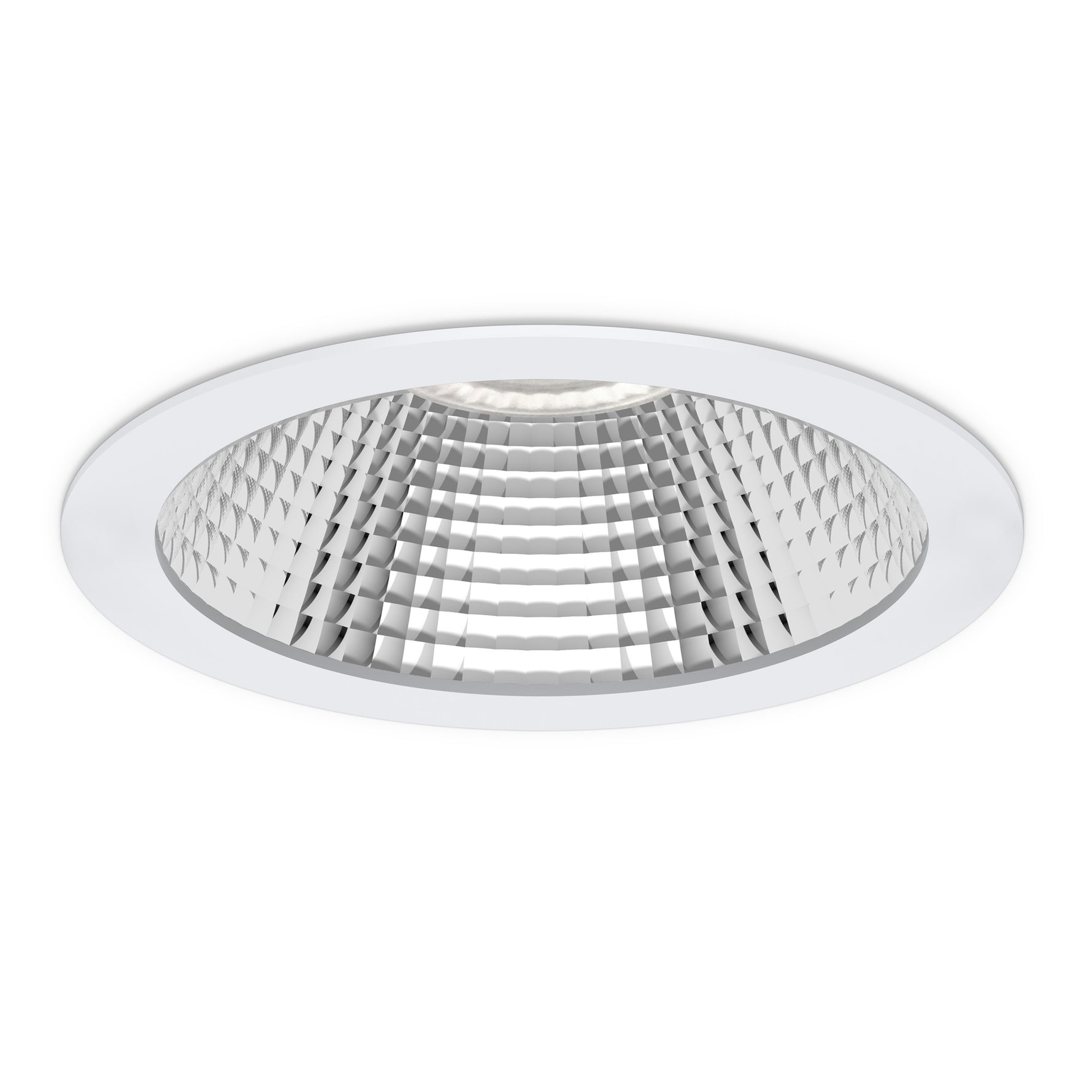

JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim
64% off
£85.40
£234.84
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.
JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
3CCT switchable as standard, 3000K/4000K/5700K
13W, 18W and 25W Options
UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
Up to 133 LpcW
IP54 rated
Low profile, suitable for shallow ceilings
60° beam angle with a Cri: of 85
Non-dimmable flicker free driver
DALI/1-10V/SW dim and DSI dimmable options
Suitable for use with JCEM002/JCEM002ST remote emergency packs
Manufacturer - JCC Lighting
Manufacturers Part Number - JC5504
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116070
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 85
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - DALI/1-10V/SW dim
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - <20
JCC - Output Voltage Max/Range (VDC) - 9-58
JCC - Class - II
JCC - Luminaire Circuit Wattage - 18
JCC - Rating(Amp) - 18
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 8
JCC - Primary Running Current(Amp) - 0.16
JCC - Secondary running current(mA) - 450
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI/1-10V/SW dim
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 2
JCC - IP Rating - IP54

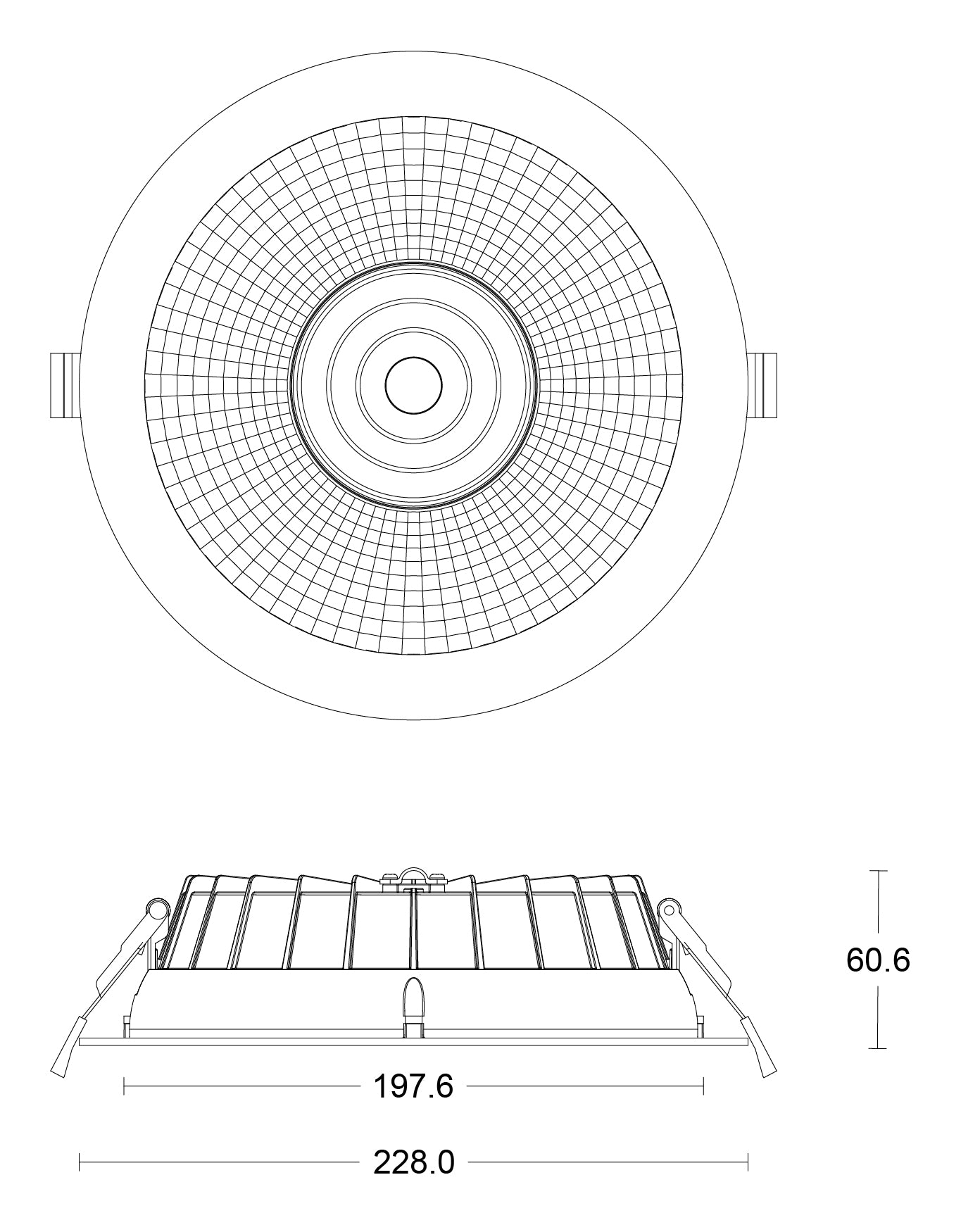

JCC - Product Aperture Size - Ø200-210mm
JCC - Method of fix - Spring clips
JCC - Diameter (mm) - 228
JCC - Depth (mm) - 60.6
JCC - Color Finish - White
