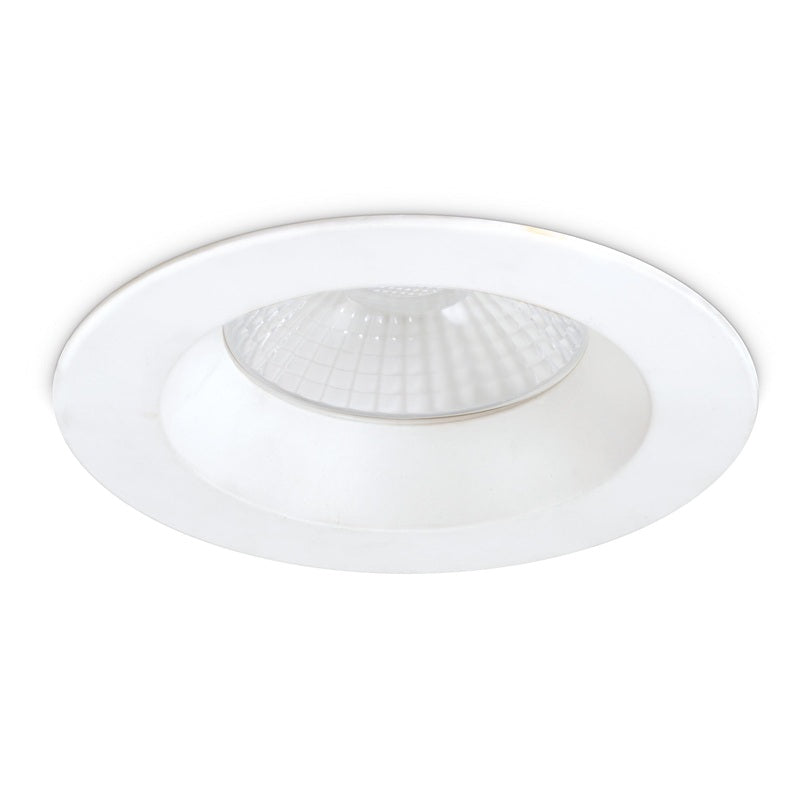

JCC Lighting JC95304DALI Nebula High Output LED Downlight IP65 10W 4000K 1000Lm DALI / 1-10V

Qty

- +

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - JC95304DALI
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544100253
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class E
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - Yes, DALI/1-10V
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 0.2
JCC - Class - II
JCC - Luminaire Circuit Wattage - 10
JCC - Rating(Amp) - 10
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 8A
JCC - Primary Running Current(Amp) - 0.065
JCC - Secondary running current(mA) - 210
JCC - Voltage Rating - 200-240
JCC - Dimming Protocol Compatibility - DALI/1-10V
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - IP65
JCC - Product Aperture Size - 95mm
JCC - Method of fix - Spring clips (provided)
JCC - Diameter (mm) - 110
JCC - Depth (mm) - 64.3
JCC - Color Finish - White
